X-ray product range For chemical and phase analysis of solids, liquids and powders
Metals, cement, mining, petrochemicals, environment,
electronics, geology, glass, polymers, forensics, materials
science, raw materials
Basic X-ray fluorescence analysis
When space and resources are limited, or you are trying X-ray analysis for the first time, the Thermo Scientific Niton Handheld
Analyzers are energy-dispersive and compact wavelength-dispersive X-ray fluorescence models that offer the easiest route into
the exciting world of rapid non-destructive elemental analysis.
Portable EDXRF systems

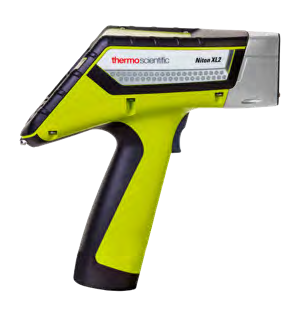

Thermo Scientific Niton Portable XRF Analyzers—get lab-quality results in
the field
- Rapid, precise metal alloy identification, and verification
- Verification of gold and other precious metals
- On-site elemental assay of soil, rock, ore for mining and exploration
- Ideally suited for applications in various industries including positive material identification in energy, petrochemical and power generation; fabrication and QA/QC; and scrap metal recycling
- Large portfolio of handheld analyzers including the newest, Thermo Scientific Niton XL5 Plus handheld XRF analyzer, as well as the existing Thermo Scientife XL3t handheld XRF analyzer, and Thermo Scientific XL2 Plus handheld XRF analyzer
Benchtop EDXRF spectrometer
Thermo Scientific ARL QUANT’X Spectrometer—flexibility for
the laboratory
- Analyze C to Am in samples of any shape, type, or composition
- A cost-effective all-round and stand-alone XRF solution
- Popular with laboratories responsible for research, forensics, environmental analysis, regulatory compliance, and quality control
- Large sample chamber for multi-point sample analysis and automated multi-sample handling in air, vacuum, and helium
- Sample imaging and adjustable beam size bridge the gap between bulk and micro XRF without compromise
- Advanced solid-state detector tæhnology rneans easy installation, no special site requirements, and low of ownership
Sequential/simultaneous WDXRF spectrometer
Thermo Scientific ARL OPTIM’X Spectrometer— smart, optimized WDXRF
- Analyze O to Am in prepared solid, fused bead, powder, or liquid samples
- Wavelength dispersion offers high resolution and selætivity for consistent and reliable performance, regardless of rnatrix
- Best sensitivity in its class for F to Zn enables precise analysis of cement, slag, ceramics, feldspar, glass, ores, and minerals
- Ideal for routine applications in process control and general laboratories with a moderate sample throughput
- Low power consumption, integrated vacuum pump, minimal site requirements
- Excellent compact inorganic material analyzer, which reduces expenses, turn-around time and complements existing ICP capability
Advanced X-ray fluorescence analysis
For critical process control and laboratory applications, we offer high-power Thermo Scientific wavelength dispersive X-ray
fluorescence and X-ray diffraction instruments that are unmatched in speed, precision and reliability. You can even combine both
XRF and XRD in the same instrument for a comprehensive materials analysis from every angle.
Sequential WDXRF spectrometers
Thermo Scientific ARLW PERFORM’X Spectrometer—where
performance meets versatility
- Analyze Be to Am in solids, fused beads, powders, or liquids
- Wide dynamic range allows for concentration analysis from sub ppm to 100%
- 6th generation goniometer, fully digitally mastered, working at the highest speed with the best accuracy and precision
- Choice of generator power (1500 W, 2500 W, or 4200 W) depending on the analysis speed required
- Small spot capability down to 0.5 mm bridges the gap between bulk and micro investigation and allows analysis of small defects
- Advanced sample mapping feature for complete elemental visualization and quantification of non-homogenous surfaces, inclusion, and contamination research with 0.1 mm steps
Simultaneous WDXRF and integrated XRD system
Thermo Scientific ARL 9900 Series—complete X-ray analysis
- Analyze B to Am in solids, fused beads, or pressed powders
- Configurable for your applications with a choice of goniometers, monochromators, and compact XRD integrated system
- Unbeatable speed, precision, and light-element sensitivity with up to 32 dedicated fixed channels rnonochromators, including one detector for each element
- Obtain elernental and phase information in one report from the exclusive integrated XRF_XRD design
- Choice of generator power depending on the analysis speed required: 1500 W, 2500 W, and 4200 W
- Safe and reliable loading of samples with an X-ray tube above the sample
Powder X-ray diffraction
Thermo Scientific ARL EQUINOX 100 Diffractometer—Transportable
benchtop X-ray diffractometer
- Compact bench top with micro source X-ray technology coupled with Smart Optic
- Standard power supply and no external water cooling
- Lightweight and small footprint, easy to install, and basic maintenance-free operation
- Standard power supply and no external water cooling Large choice of X-ray anode (Cu, Co, or Mo)
- < 200 W total power consumption Easy to use for everyone, and no alignrnent is needed
- Real-time acquisition over 110 degree 20
- Ideal for QC/QA, phase identification, and quantification
- Measurements on powder, bulk and thin film—ambient or in temperature
Thermo Scientific ARU X’ TRA Companion Diffractometer—Benchtop
X-ray diffractometer for routine analysis
- Configuration: 9/9 Bragg-Brentano geometry
- Easy to use and to install in various environment
- Standard power supply with possibility of internal water cooling
- Cu or Co anode X-Ray tube
- Solid state pixel 2D detector (55 x 55 pm pitch) of last generation
- Fast and resolute data collection
- X-Ray beam collimation with various slits and variable beam knife
- Automated analysis with dedicated sample changer to your needs
The Thermo Scientific ARUM SMS-2300, SMS-3300, and SMS-3500 robotized systems
